Branding On Steroids

Branding On Steroids

In a previous blog post (opens in a new tab) 👈, I introduced Asgardeo Organization Branding (opens in a new tab) capabilities. And since then, we have added quite a few cool nifty features that could really help users to achieve advanced customizations whilst staying in the low code realm.

This blog post will take a sample scenario and compare the newly added capabilities.

TL;DR:

To have a branding like the sign-in page of this application 👉 https://drogo-nft-demo.web.app (opens in a new tab), update the branding configurations of your organization with these values (opens in a new tab).

And also watch this how to view 👉 https://www.youtube.com/watch?v=yXhSaNUMMN4&ab_channel=Asgardeo (opens in a new tab)

Scenario 🏜

Drogo is a new startup company that specializes in NFTs (opens in a new tab). They have a marketplace application (opens in a new tab) that is hosted on Firebase.

They want to let their users log in to their marketplace application and also they require to drive new users to register with their service via the application. This is where Asgardeo comes in. They’ve used the Asgardeo React SDK (opens in a new tab) to integrate login capabilities to the application.

Here’s the progress until now!

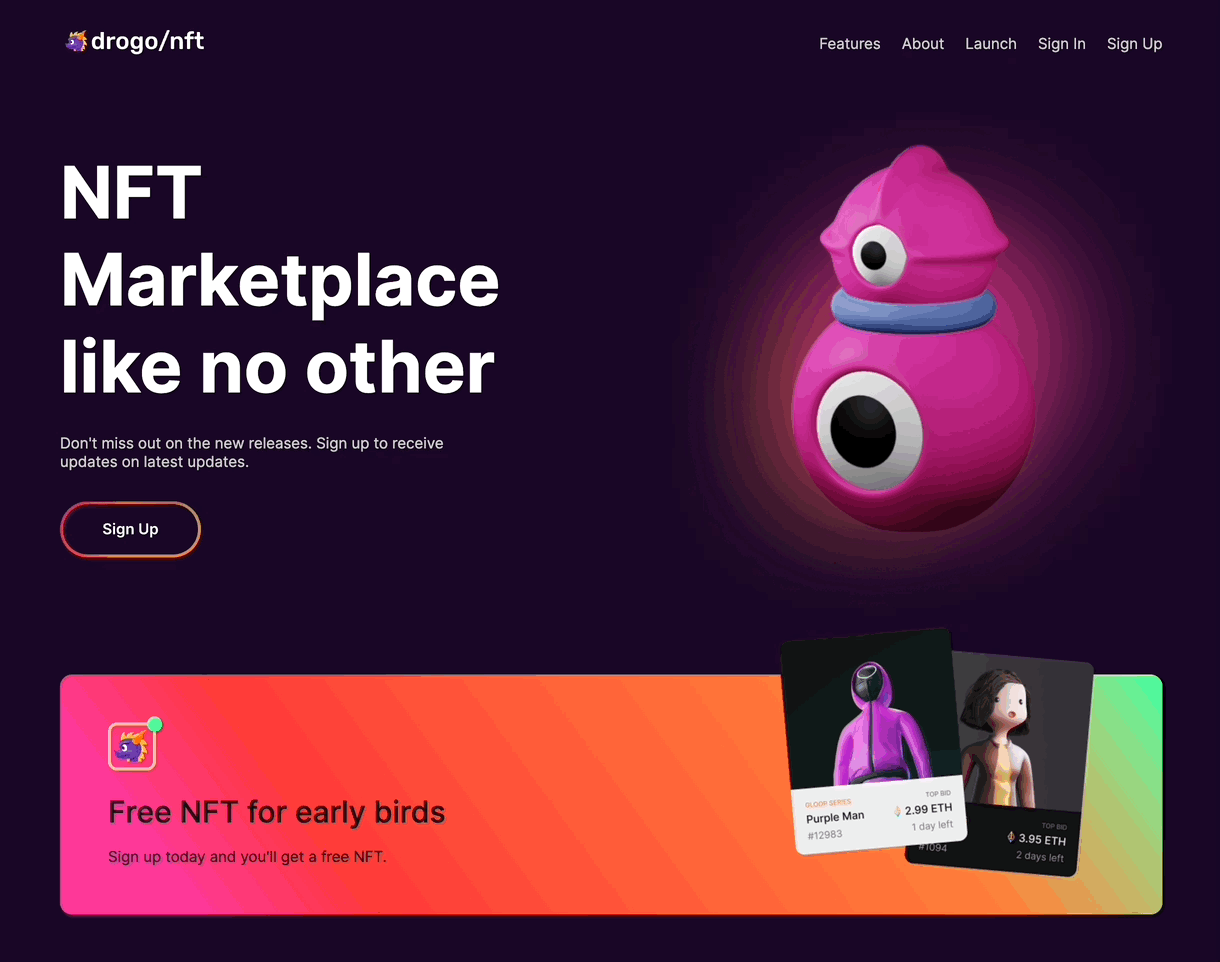

Drogo Application initial flow

Did you notice what’s lacking here?

Of course, the branding transition sticks out like a sore thumb.

Let’s fix it. shall we…

Get Started 🚀

I will first log in to Asgardeo Console (opens in a new tab) with the credentials of my organization(drogo). And I will navigate to Develop > Branding to reach the branding feature.

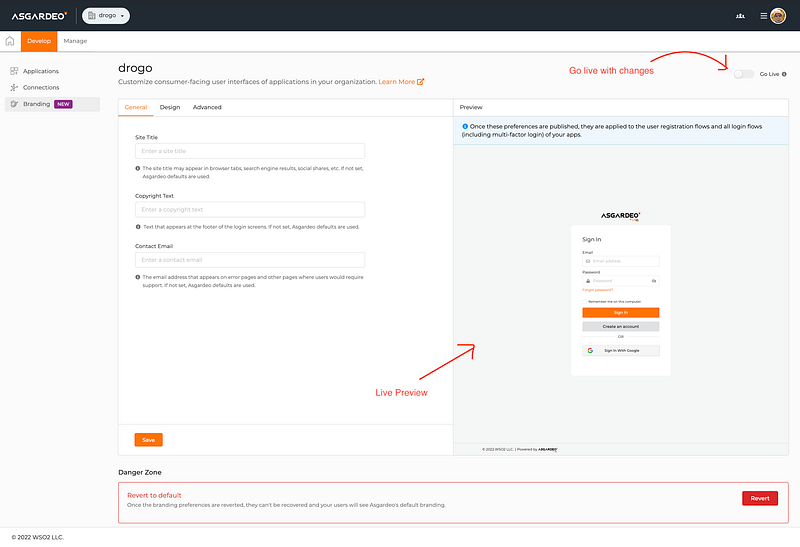

Branding Feature in Asgardeo Console

⚠️ Always remember to Go Live if you want your changes to appear

General Settings ⚙️

Here we can configure the general settings of the company branding. I will explain in brief what each of these fields does.

Also, I will be adding the values i’m using so it’ll be easier if you decide to follow along 😉

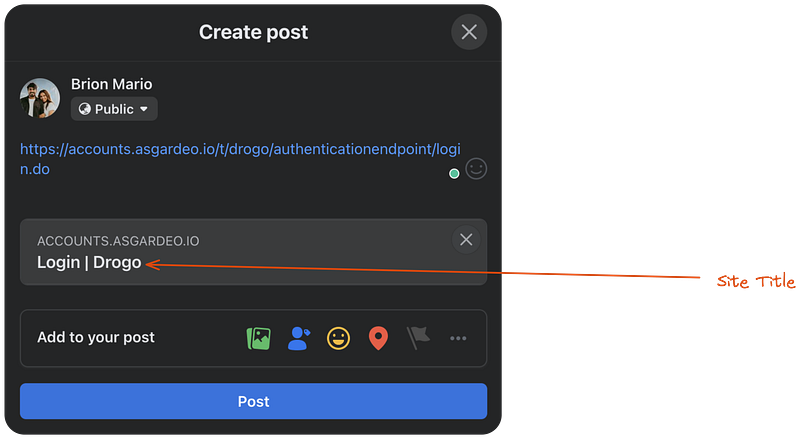

Site Title

This is the text that appears in the browser tab when you shower over, in social media shares, etc.

Value Used

Login | Drogo

In Action

Copyright Text

Text that appears at the footer of the login screens.

Value Used

© Drogo 2022. All Rights Reserved.

In Action

For free-tier subscriptions, the Powered by Asgardeo label will display on the Asgardeo-powered interfaces when branding is published.

Contact Email

The email address appears in error pages and other important areas where your customer might want to contact you for additional support.

Value Used

support@drogo.io

In Action

Design 🎨

Theme

This is the base for your design. We currently support Dark 🌑 & Light 🔆 variants to start with.

Since the Drogo NFT application has a darker tone, I will start with the Dark theme.

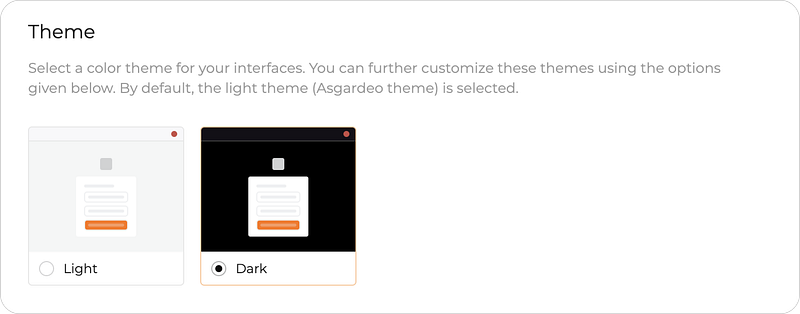

Theme Selection

Theme Preferences

Now I can start customizing the overall look and feel based on the organization’s branding guidelines.

Following is the color palette salvaged from the company’s branding guidelines.

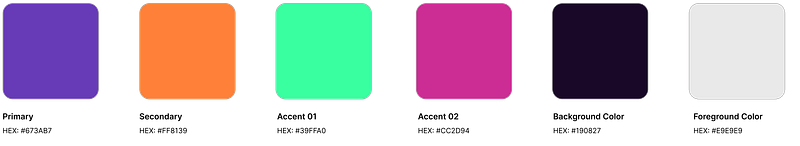

Color Pallete

Theme Preferences > Images

Logo

This is the image that appears on top of the Login Box. You can add a hosted URL of an image and also an Alt text (opens in a new tab) for accessibility.

For better performance, use an image that’s 600x600 pixels and less than 1mb .

Favicon

This is the image that appears on the browser tab. You can also add a URL of a hosted favicon image here.

For better results, use an image with a square aspect ratio that’s at least 16x16 pixels in size.

images:
    logo:
        alt: Drogo Logo
        url: https://drogo-nft-demo.web.app/images/dragon-face-85x.svg
    favicon:
        url: https://drogo-nft-demo.web.app/favicon.ico

Theme Preferences > Color Palette

Primary Color

Color of the primary action buttons, hyperlinks, etc.

Secondary Color

Color of the secondary action buttons like cancel buttons, etc.

colors:
    primary: #673ab7
    secondary: #ff8139

Theme Preferences > Page

Background Color

The background color of the body of the pages in the login screens.

Font Color

The font color of the pages instead of hyperlinks. If you change this value, it’ll affect the overall font color of elements like headers, input labels, etc. You will be able to have more fine-grained control over the input label colors in later sections.

page:
    background: #190827
    font_color: #ffffff

Theme Preferences > Footer

Border Color

The top border color of the page footer.

Font Color

The font color of the copyright text and other links in the footer.

footer:
    border: #333333
    font_color: #9b9b9b

Theme Preferences > Font

The font-face of the login pages.

Use a Web Safe Font

Pick a web-safe font (opens in a new tab) (fonts that are pre-installed by many operating systems) like Arial, Times New Roman, etc.

Import a Font

Import a font from a CDN or a font service like google (opens in a new tab).

Import a Font > Import URL

Enter a URL to import a custom font from a font service.

Import a Font > Font Family

Name of the font family you are planning to import. This is usually documented in the font service.

font:
    import_url: https://fonts.googleapis.com/css2?family=Inter:wght@300;400;500;600;700&display=swap
    family: 'Inter', sans-serif

Theme Preferences > Headings

Font Color

Font color of the H1, H2, H3, H4, H5 & H6 headings in the login pages.

headings:
    font_color: #ffffff

Theme Preferences > Buttons > Primary

These buttons appear as the primary actions in the login flows.

Font Color

Color of the primary button’s font.

Border Radius

Border radius of the primary button.

The background color of the primary button will be infered from the primary color defined in the color pallette.

Theme Preferences > Buttons > Secondary

These buttons appear as the secondary actions in the login flows such as cancel buttons, etc.

Font Color

Color of the secondary button’s font.

Border Radius

Border radius of the secondary button.

The background color of the secondary button will be infered from the secondary color defined in the color pallette.

Theme Preferences > Buttons > External Connections

These buttons are used to display external IdPs and social connections (Google, Facebook, etc) inside the login box.

Background Color

The background color of the button.

Font Color

Color of the button’s font.

Border Radius

Border radius of the button.

buttons:
    primary:
        font_color: #ffffff
        broder_radius: 20px
    secondary:
        font_color: #000000
        broder_radius: 20px
    external:
        background: #24292e
        font_color: #000000
        broder_radius: 20px

Theme Preferences > Login Box

Background Color

The background color of the login box.

Font Color

The color of the text inside the login box including text, input labels, etc.

If you need to change input labels to a different color, that can be done from the Inputs section.

Border Color

The border color of the login box.

Border Width

The border width of the login box.

Border Radius

The border-radius of the login box.

login_box:
    background: #9013FE -> ALPHA 15
    font_color: #ffffff
    border:
        color: #6821a7
        radius: 12px
        width": 1px

Theme Preferences > Inputs

Background Color

The background color of the text inputs, checkboxes, etc.

Font Color

The font color of the characters inside the text input fields, ✔️ of checkboxes, etc.

Border Color

The border color of the text inputs, checkboxes, etc.

Border Radius

The border-radius of the text inputs.

Theme Preferences > Inputs > Input Labels

Font Color

The font color of the labels of text inputs, checkboxes, etc.

inputs:
    font_color: #ffffff
    background: #22043c
    border_color: #292929
    border_radius: 4px
    labels:
        font_color: #cccccc

Advanced 🔗

And finally, under advanced, we can configure the privacy, terms of service (TOS), and also the cookie policy URLs.

If these are not configured when the branding is live, the privacy and TOS links will not be visible in the footer and the cookie policy popup will also be hidden.

privacy_policy: https://drogo-nft-demo.web.app/privacy
terms_of_ervice: https://drogo-nft-demo.web.app/terms-of-service
cookie_policy: https://drogo-nft-demo.web.app/cookie-policy

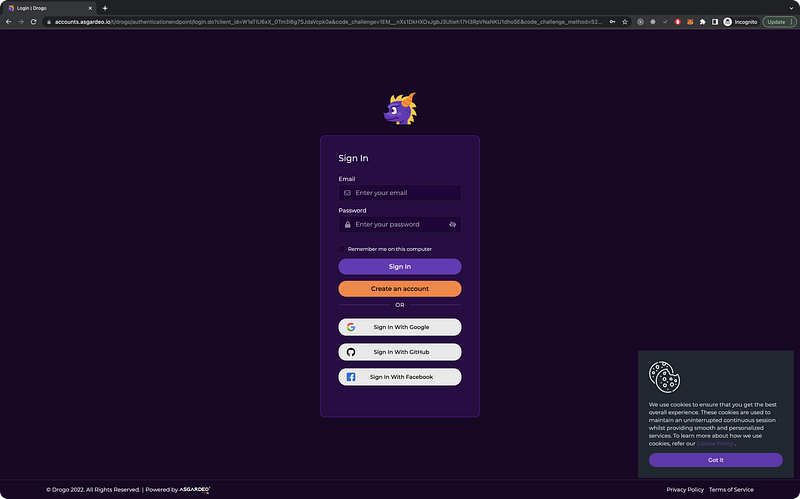

Final Outcome 🎉

To see for yourself, go to https://drogo-nft-demo.web.app (opens in a new tab) and click on Sign In

Live Demo 📹

Concluding Remarks 🔚

Asgardeo (opens in a new tab) RnD team is tirelessly working on improving the feature further.

If you have any further requests or suggestions, please reach out to the team through our community (opens in a new tab) or via asgardeo-help@wso2.com.

Signing off… ✌️❤️
